CAPTURE/move
1 WEEK
AUTUMN 2018

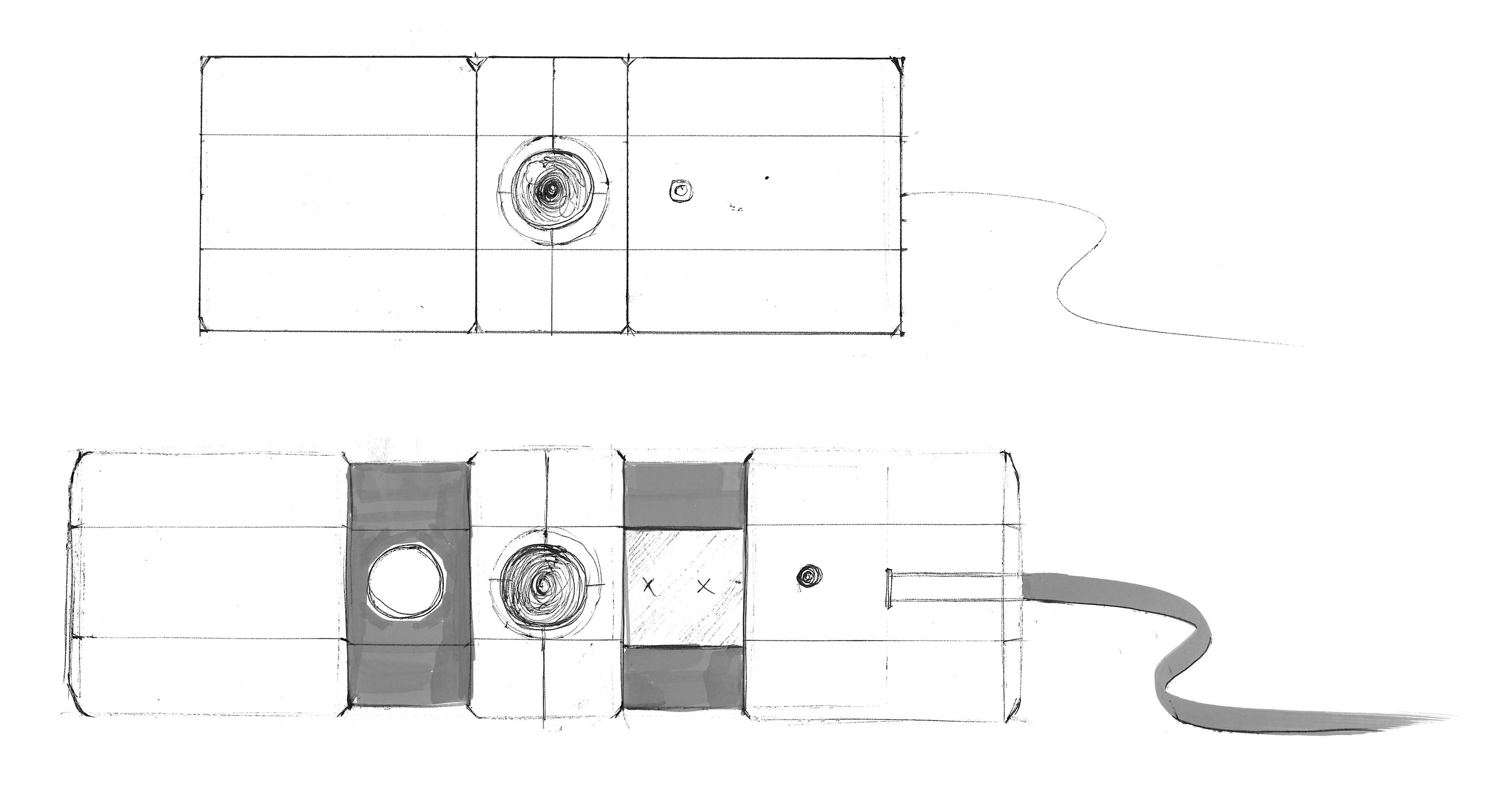

In collaboration with Photon Sports the assignment was to design a 3D depth camera. Mounted on a tripod the camera uses an optical measure technique that capture movements and provides feedback to athletes.
PROJECT FOCUS
3D modeling in Rhino
Conceptual client project

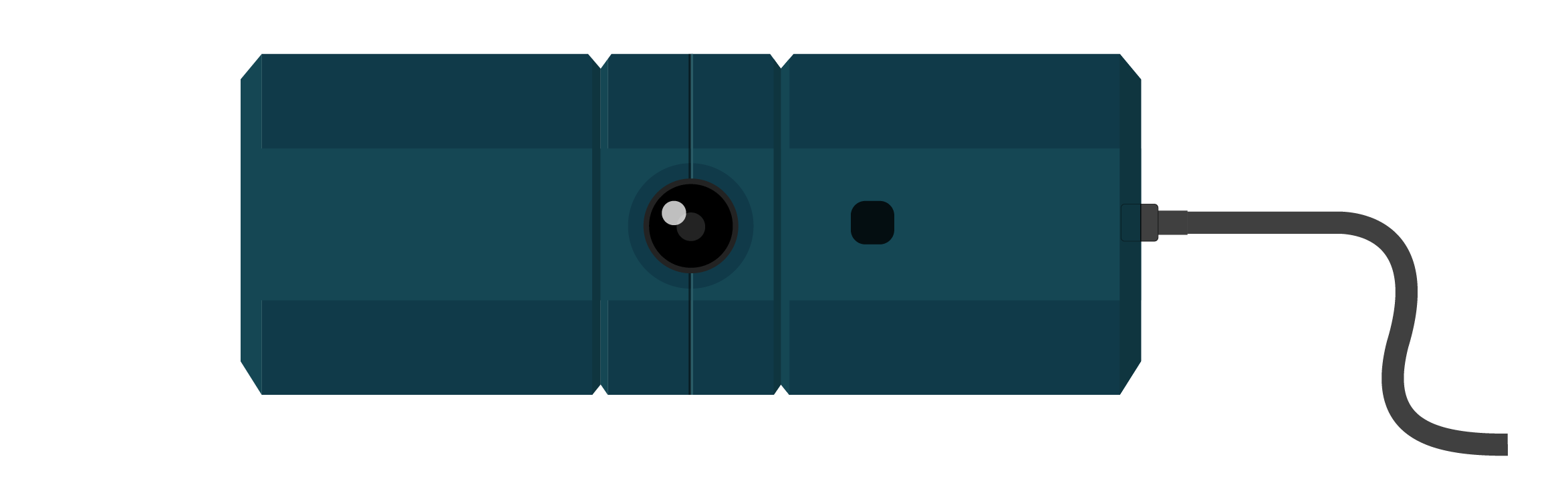

1 Digital camera:
Capturing visual
imagery.
2 3D depth camera:
Capturing movements
scanned by the lasers.
3 Lasers:
Scanning movements.
4 LED light.
5 USB portal:
Outer shell protecting
the usb-cable
connection.
Capturing visual
imagery.
2 3D depth camera:
Capturing movements
scanned by the lasers.
3 Lasers:
Scanning movements.
4 LED light.
5 USB portal:
Outer shell protecting
the usb-cable
connection.
